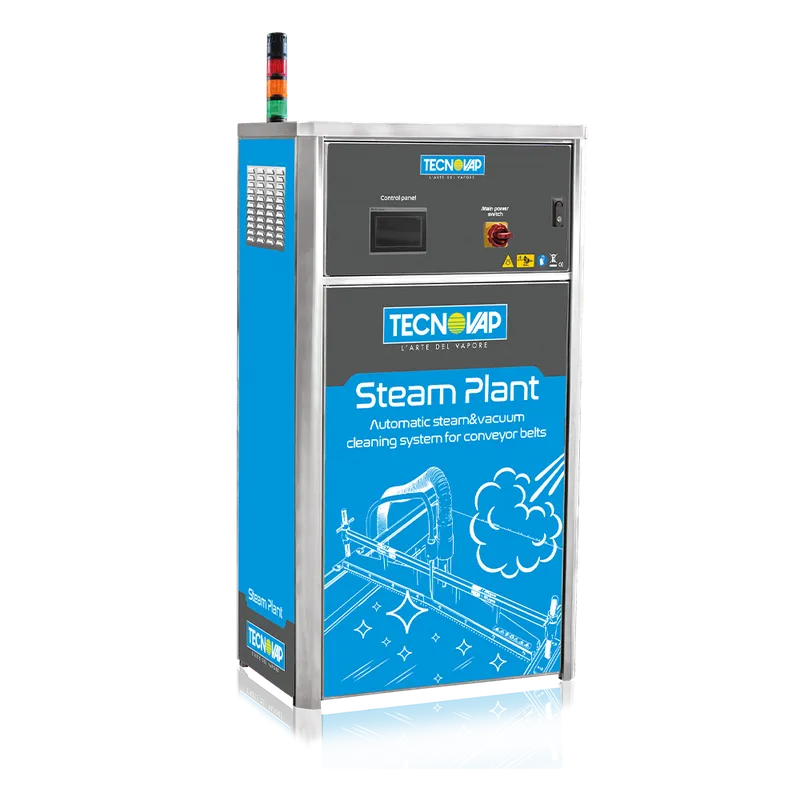

Steam Plant

Fully automated steam plant for the food industry, designed for steam cleaning of conveyor belts.

Steam Plant from 10.8 / 39.1 kW

Steam Plant by Tecnovap
Steam Plant by Tecnovap
Typical use
Food production lines
Main features
BoilerAISI 304 stainless steel
Power supply400 V 3N
Pressure6-10 bar
Steam temperature165-183 °C
Steam output291-970 g/min
  • Automatic mains water feeding
  • Integrated inflow water pressure reducer
  • Integrated water treatment filter with cationic resins
  • Cooling system for the vacuumed steam/liquid
  • Automatic boiler maintenance
  • Anodizing treatment of the vacuum turbine for its protection against corrosion
  • Automatic stop function
  • Status signals on the light/acoustic indicator
  • 7" touchscreen panel as HMI
  • Simplified menu to start the cleaning, two buttons only: "Start" and "Stop"
  • Cleaning time setting

Automatic steam plant for the food and beverage sector.

Equipment included


Geyser 1 steam gun

Radames hose, 10 bar

Gallery

Steam Plant by TecnovapSteam Plant by Tecnovap

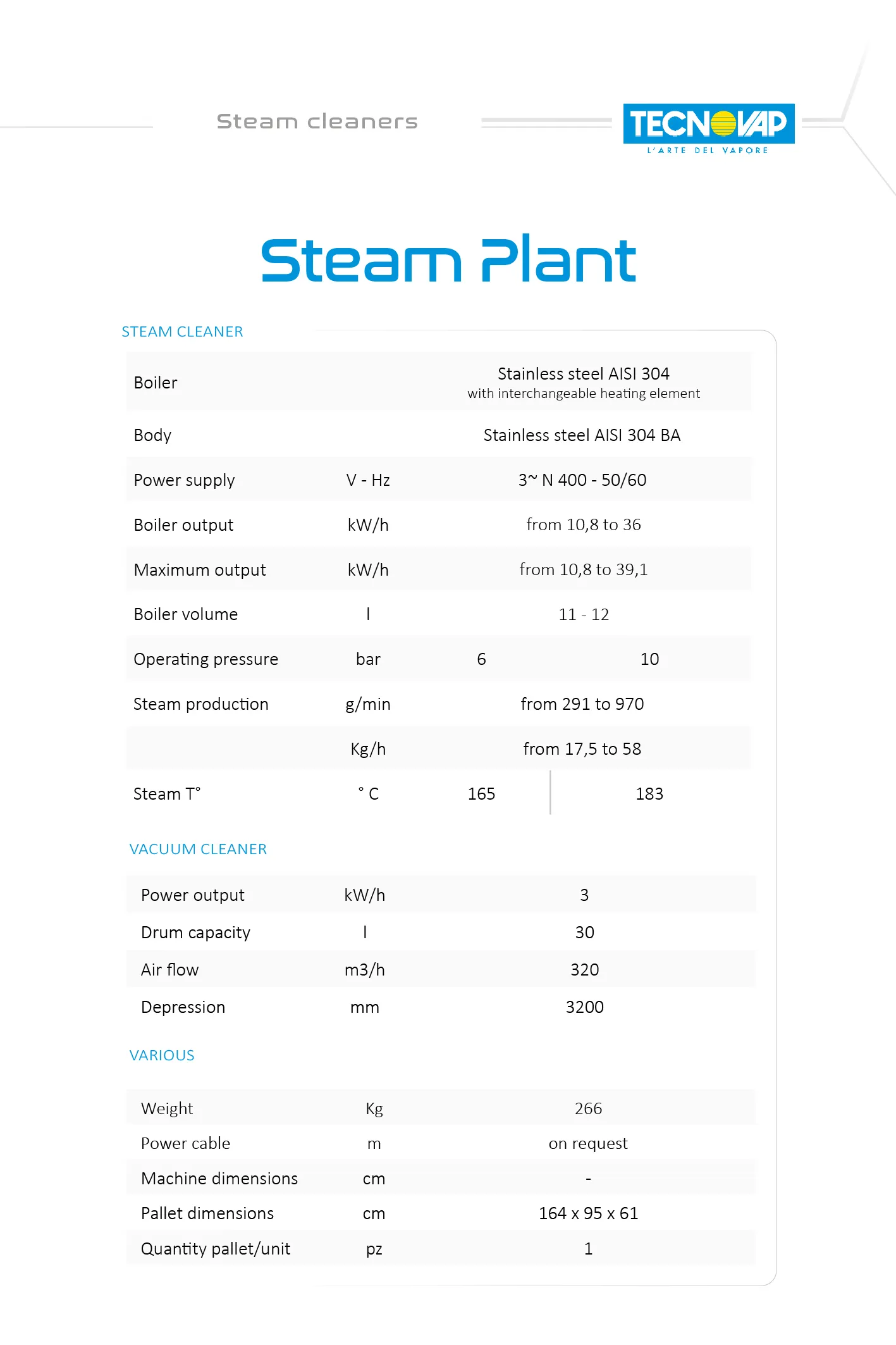

Technical data table
Technical data table

Videos
