ECHONAT
Bacchus wineries

Bacchus Pro

Steam cleaning in wineries is very popular, as it saves large quantities of water for cleaning barrels, stainless steel tanks and bottling lines. Steam cleaning is an environmentally friendly cleaning method that does not rely on chemicals, but rather uses the high steam temperature to kill bacteria through thermal shock.

Bacchus Pro 3.75 / 7.35 / 10.95 / 14.55 kW

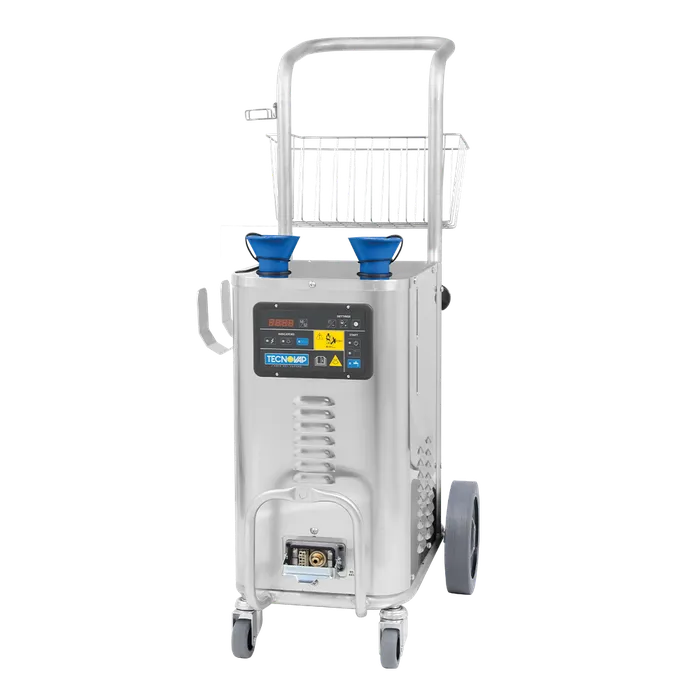

Bacchus Pro by Tecnovap

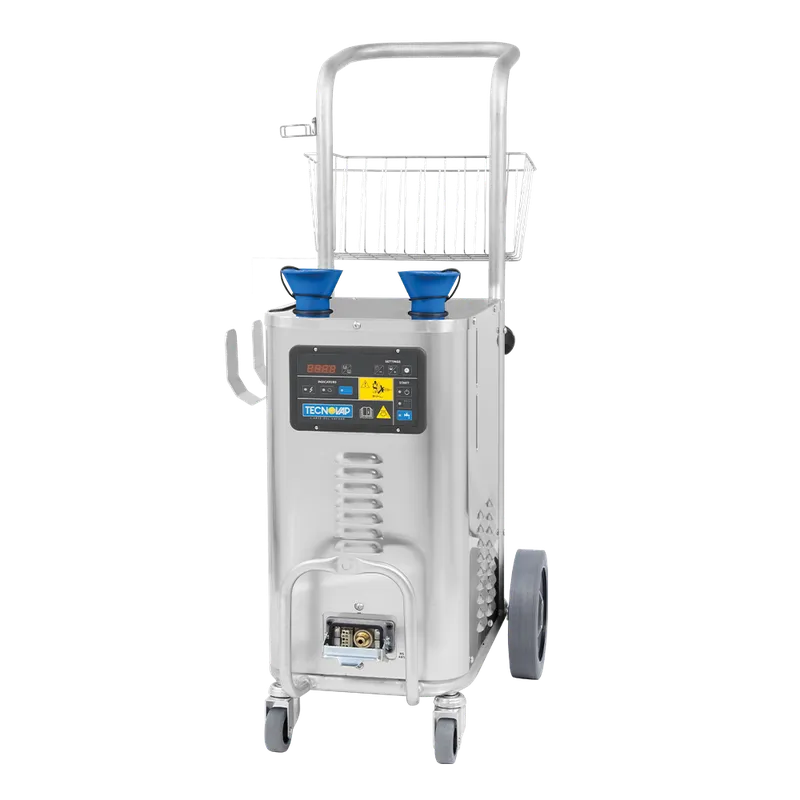

Bacchus Pro by Tecnovap
Typical use
Mid-size wineries
Main features
BoilerAISI 304 stainless steel
Power supply400 V
Pressure6 bar
Steam output97-388 g/min
Installationstatic/fixed installation
  • Bottling plants: up to 3000 bottles/h*
  • Barrel room: up to 50 barrels*

Steam cleaner with stainless-steel body and boiler, able to deliver dry saturated steam at 165°C. All functions are managed from the electronic control panel.

Equipment included


Bacchus accessory kit

Geyser 1 steam gun

July hose, 10 bar

July hose, 6 bar

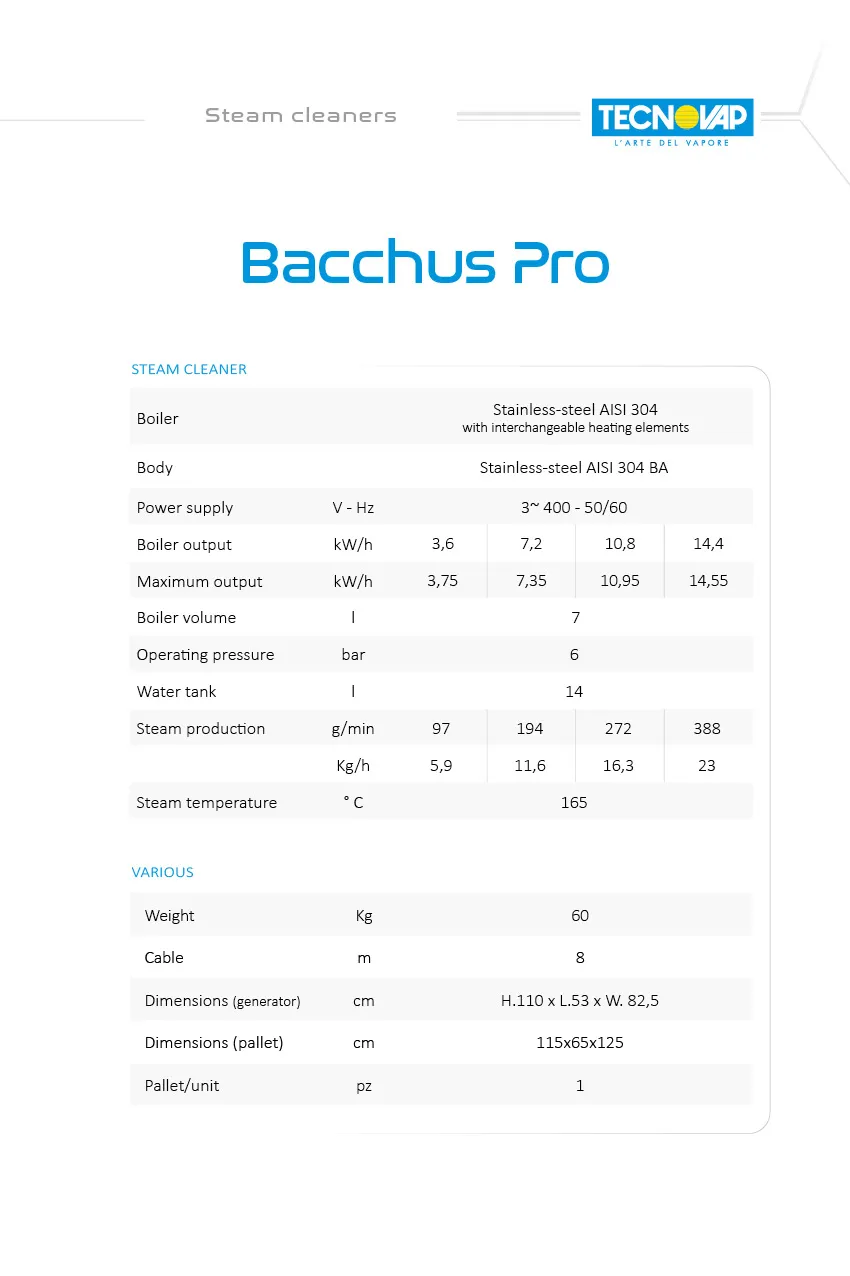

Technical data table
Technical data table

Videos

Sectors of use
